Product Details
＋

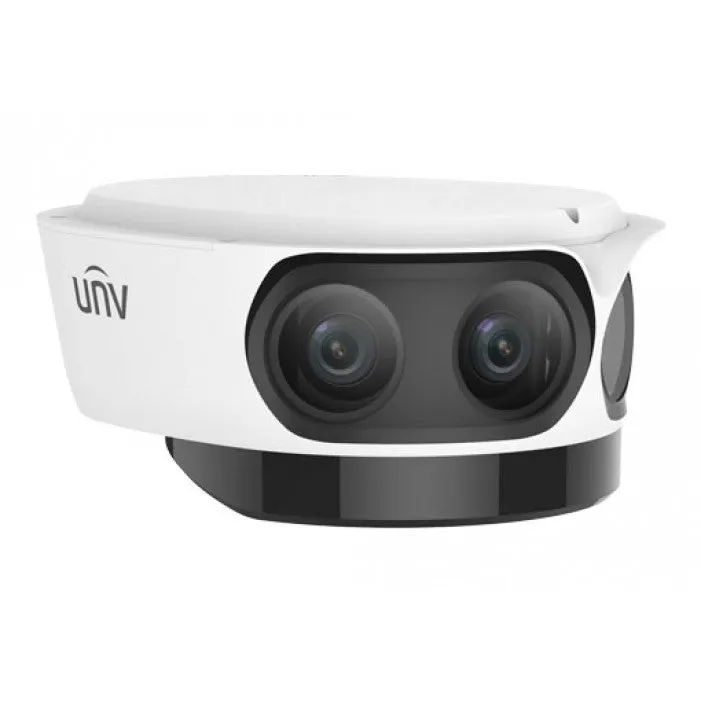

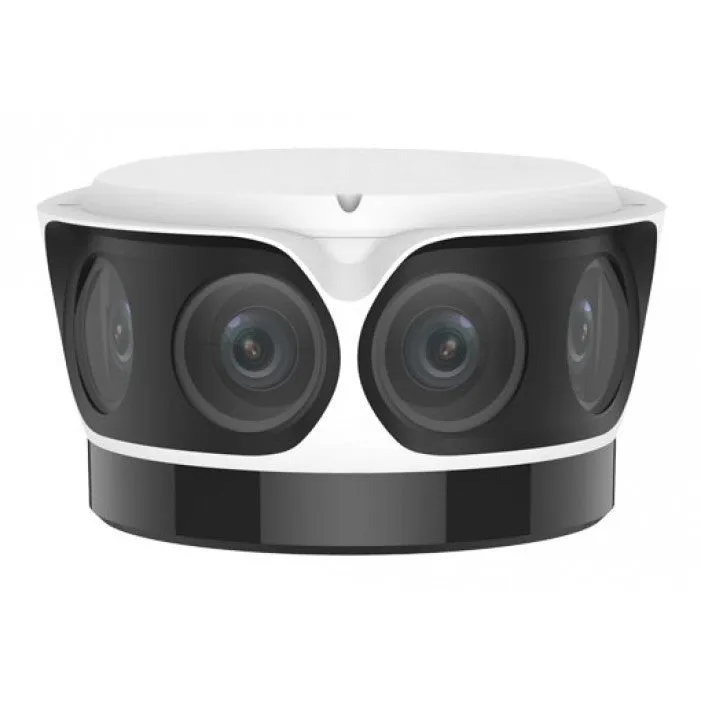

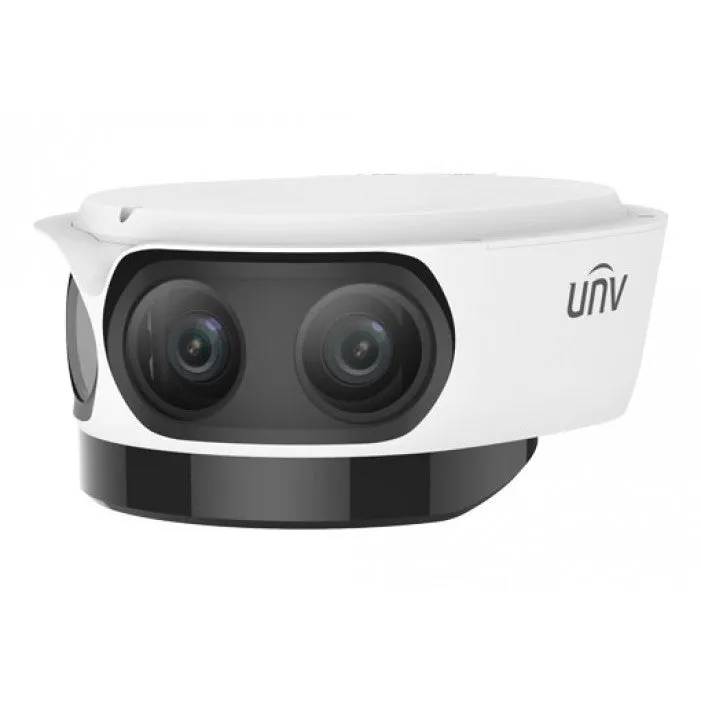

The IPC8542ER5-DUP from Uniview is a 4K starlight omniview network camera with 4.2mm lens.
Features
Optics
- Fifth-generation infrared technology, up to 50m (164ft) IR distance
- Starlight illumination
- Smart IR
- 2D/3D DNR (Digital Noise Reduction)
- 120dB true WDR
- Support a horizontal viewing angle of 180°
Compression
- Ultra H.265, H.265, H.264, MJPEG
- Five streams
- Customized OSD
- 4096×1800@30fps supported
Network
- ONVIF Conformance
Structure
- AC/DC24V or PoE (IEEE 802.3at) power supply
- Wide voltage range of ±25% in AC, 18V~48V in DC
- Micro SD, up to 256 GB
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
| Product SKU | IPC8542ER5-DUP |
|---|---|
| Brand | Uniview |
| Condition | New |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| IR Distance | 50m/164ft |
| S/N Ratio | >52dB |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
| Privacy Zone | Up to 8 areas(8 blacks/8 mosaics) |
| Power Consumption | Max 24W |
| OSD Menu | Up to 8 OSDs |
| Operating Temperature | –40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | ≤95%RH RH(non-condensing) |
| Minimum Scene Illumination | Colour: 0.002lux (F1.8,AGC ON) 0lux with IR |
| Lens Size | 4.2mm |
| Camera Signal | Network IP |
| Lens Type | Fixed |
| Angle of View | (H): 180°, (V): 80°, (O): 221.4° |
| Digital Noise Reduction | 2D/3D DNR |
| Weatherproof | IP67 |
| IR Wavelength | 850nm |
| Back Light Compensation | Support |
| Automatic White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Infrared Distance | 101 Feet |
| Resolution | 8 Megapixel (4k) |
| Voltage | 24vDC, 24vAC, PoE |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Connection Type | Wired |
| Image Device | 1/1.8" progressive scan, 2.0 megapixel, CMOS |
| Electronic Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s |
| Dimensions (W x H) | 259mmx211mmx115mm(10.2”×8.3”×4.5”) |
| Durability | Weather Resistant |
| Mount Type | Bracket Required |
| Audio | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
