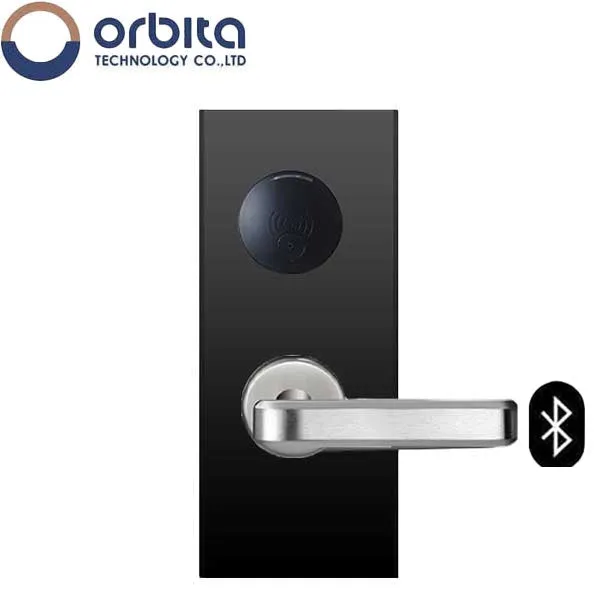

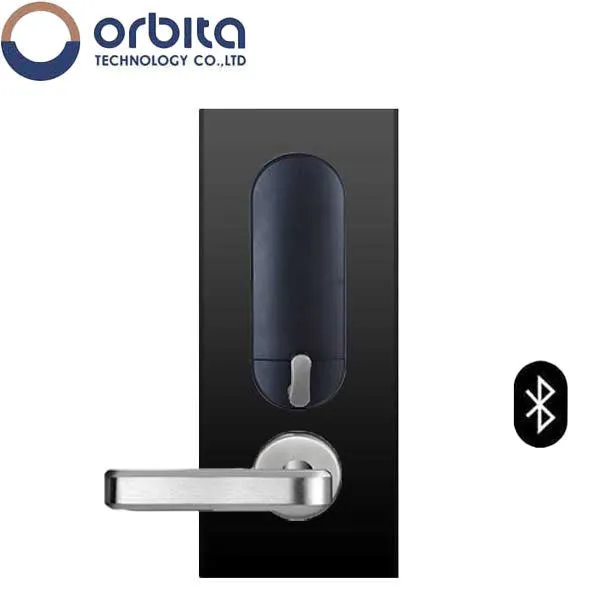

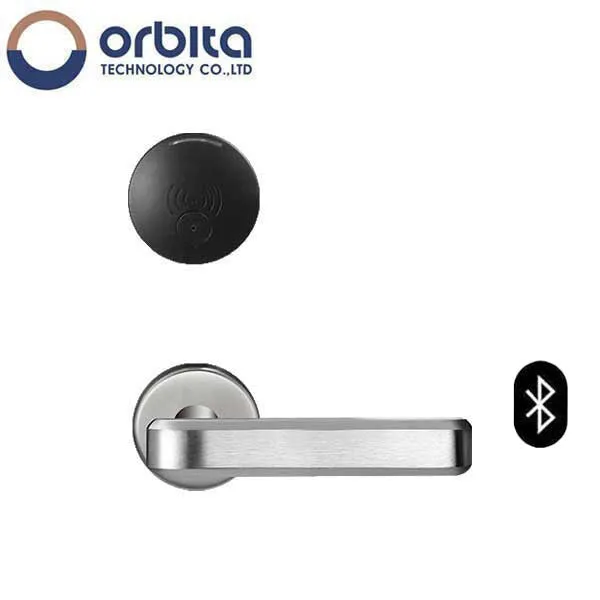

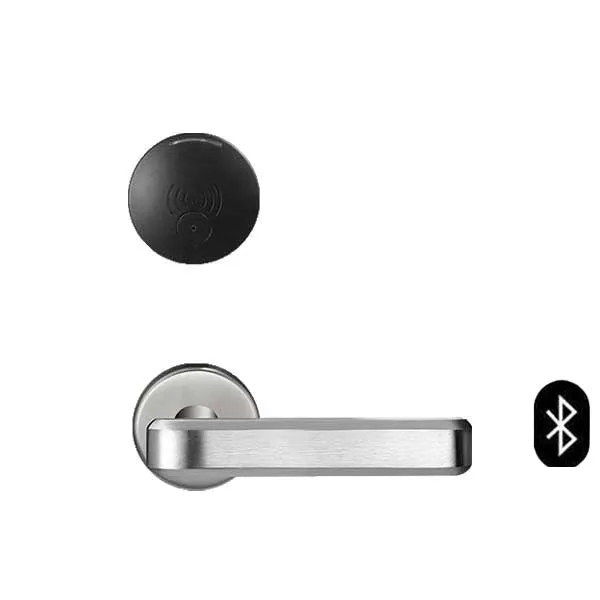

OTC-S3079SBT
Orbita is a reputable hospitality products manufacturer with ISO certified 46,000 square meters garden factory, established to offer the best quality products with professional and effective service to our customers. All of ORBITA products are CE, FCC, RoHS marked and ORBITA is one of the few brands in this industry that passed 800,000 times BHMA standard circling test.
Features:
- See Orbita MiFare and Bluetooth Software Download Center
- Two-Piece design
- Unlock with Mobile app
- Interface with most of the PMS system, Fidelio/Opera registered
- CE & FCC Certified
- Stainless steel color lasts more than 10 years
- ANSI Standard mortise
- Inside Deadbolt, Inside handle retracts latches and deadbolt
- Mifare 1K card, compatible with Mifare Energy Saver (card sold separately)
- Lost Guest Card suspension simply by issuing a new guest card with suspending function
- Multiple operators with different card issuing authorization
- Low battery voltage warning. (Lower then 4.8V).
- Self Error detecting with “Beep”
- Passage Model function available
- Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis Court/Gym... etc

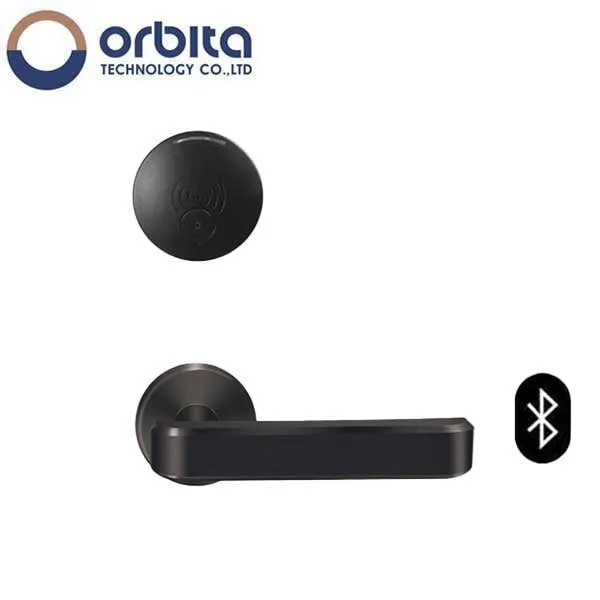

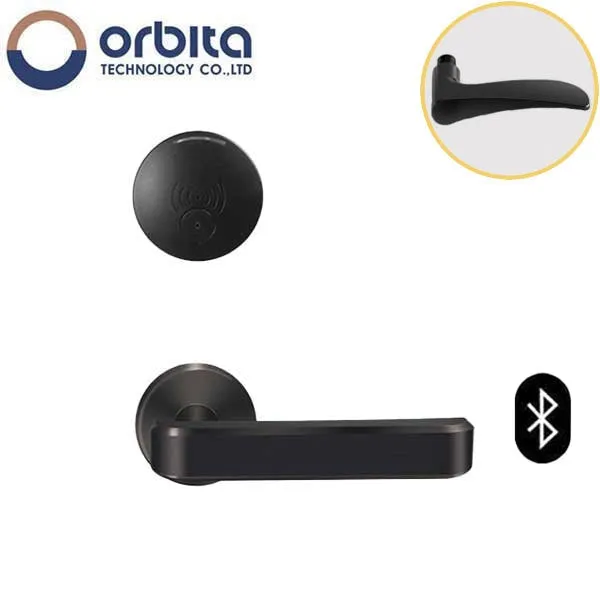

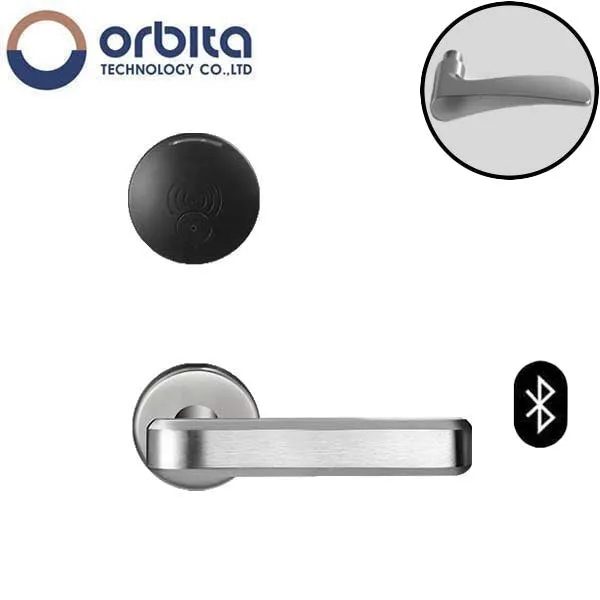

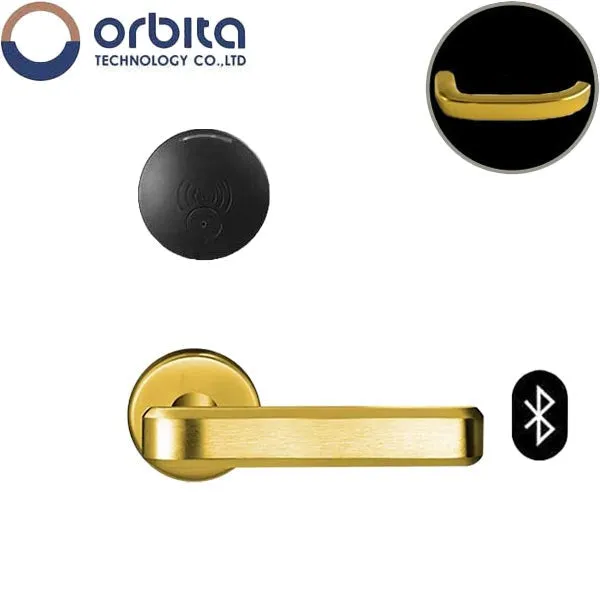

| 72 - Ares Return |

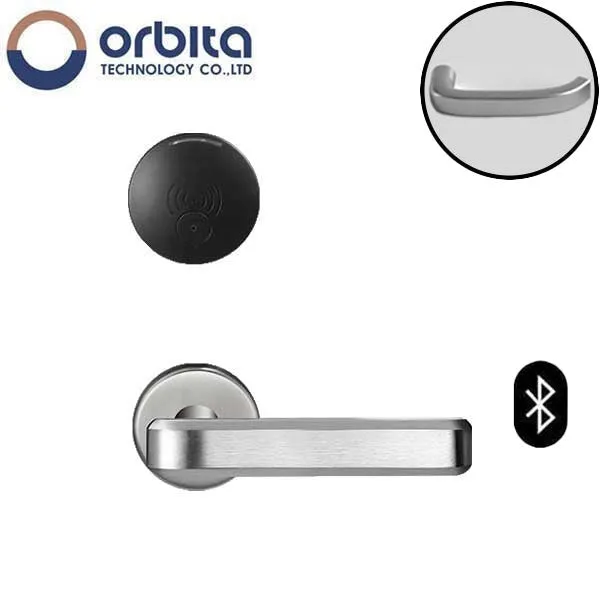

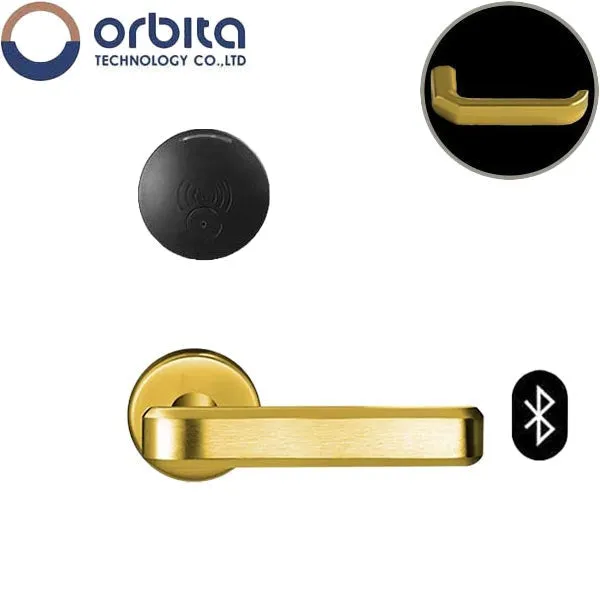

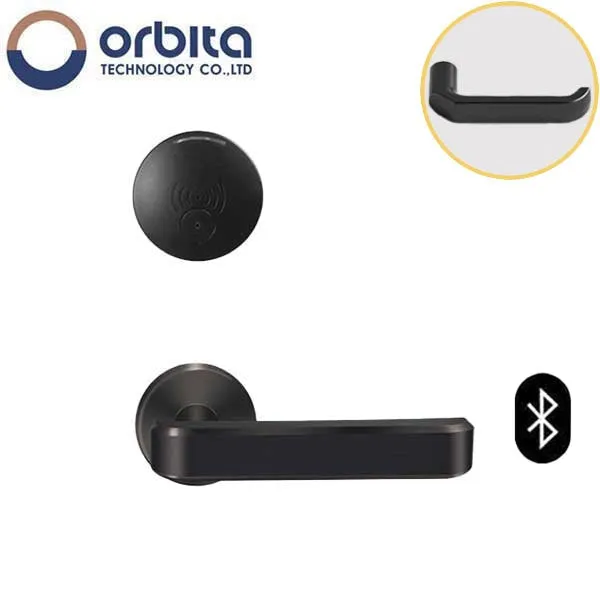

41 - Minerva Return |
92 - Mars Return |

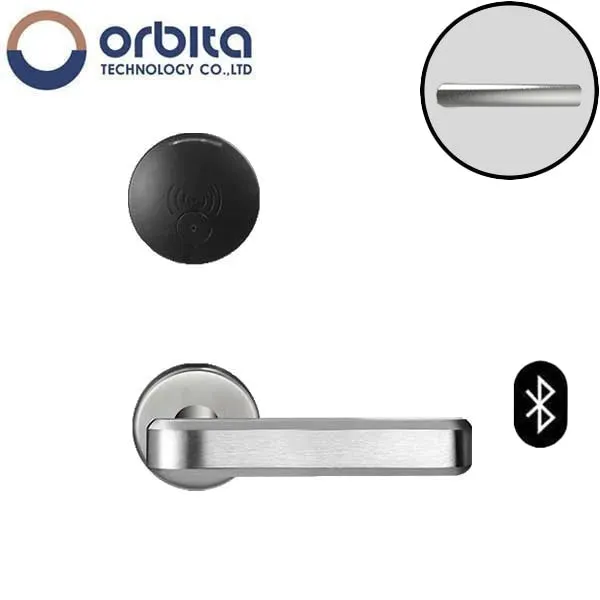

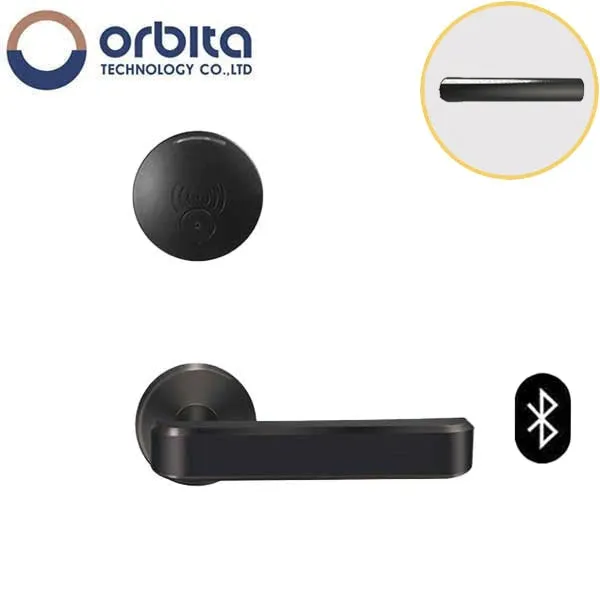

74 - Neptune Straight No Return |
30 - Apollo Straight No Return |
Specifications:
| Material: | 304 Stainless Steel |

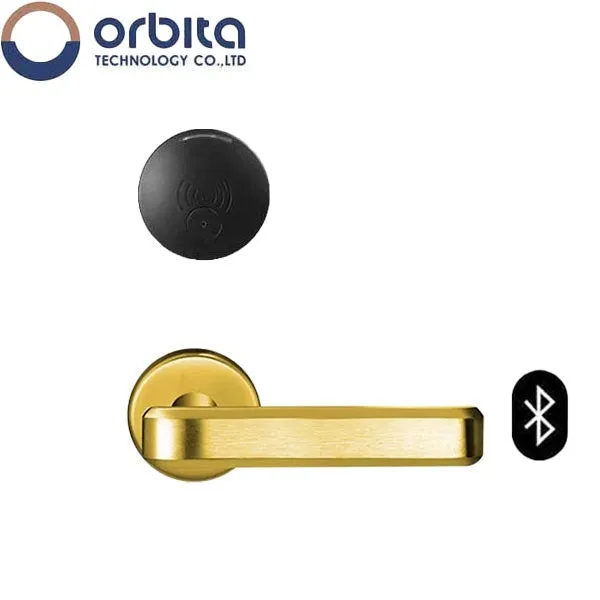

| Finish: |
Silver |
| Lever Style: | 72 - Ares Return 41 - Minerva Return 92 - Mars Return 74 - Neptune - Straight No Return 30 - Apollo - Straight No Return |
| Working Voltage: | DC6V or 4 AA Alkaline batteries |
| Low Voltage Alarm: | ＜4.8V |

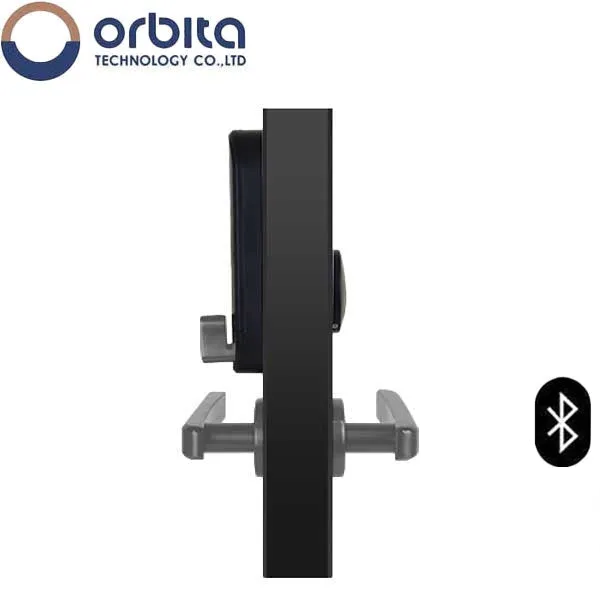

| Door Thickness: | 35-70mm (1.37 - 2.76in) |
| Operating System: | Most of the PMS system, Fidelio/Opera |
| Keycard: | Mifare 1 card, compatible with Mifare Energy Saver |
| Unlocking Record: | 1680PCS |
| Access Levels: | General Master, Building master, Emergency card, and House Keeping card |
| Functions: | Meeting room |
| Cycles: | 800,000 |
| Lock Body: | 5 latch ANSI U.S. standard mortise |
| Working Environment: | -20℃~60℃ |
| Dimensions: |
L60mm x W60mm x H12mm (2.36in x 2.36in x 0.47in) |
| Ingress Protection: | IP54 / Flame Retardant |
| Certifications: | ISO 9001:2015, CE, FCC, ANSI 156.13 / 156.25 Grade 2 |
| Manufacturer's Warranty: | 10 Years |
Downloads:
- See Orbita MiFare and Bluetooth Software Download Center
NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1 (561) 590-1151 between Monday and Friday 9AM-6M EST for freight shipping costs
