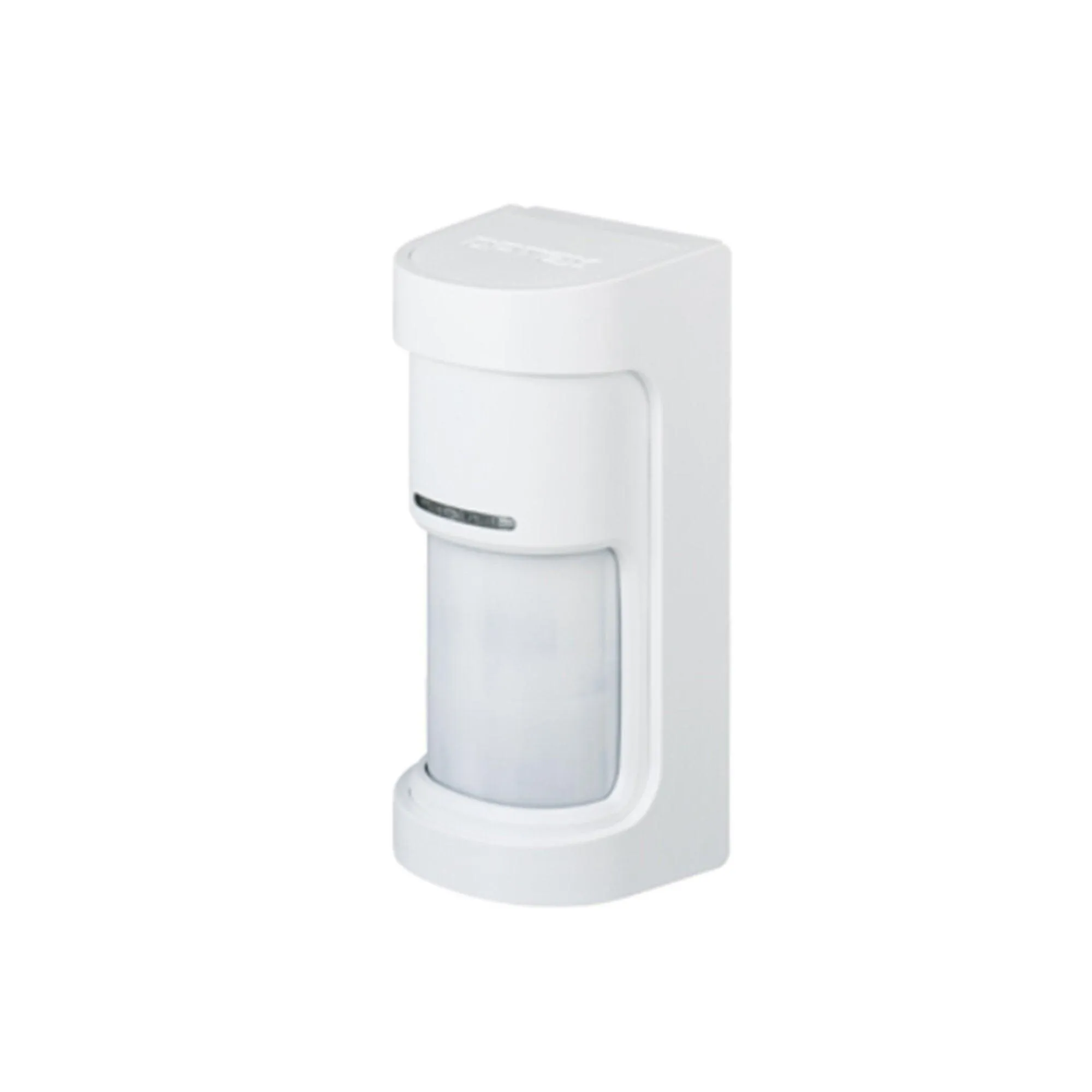

OPTEX WXS SHIELD WIRELESS OUTDOOR PIR WITH AM
The WXS series from the Shield family is the newest addition to OPTEX's lineup of outdoor intrusion detection sensors. With customizable range detection and settings, as well as the option for a low (0.8 - 1.2m) or high (2m) mount, this sensor is perfect for protecting residential and commercial buildings, including approach or flat roofs.
It also comes equipped with advanced features such as double conductive shielding to prevent false alarms caused by sunlight or RFI, and a convenient automatic walk test. The WXS-AM model is wired for added security.
Flexible mounting height
The WXS outdoor intrusion sensors can be installed at a low mount providing a flexible detection area from 2.5 to 12m. It can also be mounted at 2.0m high, creating a volumetric detection area with 9m detection range. This option can be effective to avoid vandalism or masking of lens.
Two independent left / right detection areas
In low mount configuration, the WXS intrusion detection sensors feature two completely independent 90 degrees detection areas (left and right), that can be set at different detection distance, sensitivity and trigger independent alarm outputs which is very useful for PTZ activation.
Detection analysis and pet tolerance
The WX Shield outdoor intruder sensors are designed to be pet and animal tolerant which means it will not trigger if cats, dogs, birds are in the detection area making it very stable. Additionally they feature OPTEX Super Multi-dimensional Analysis (SMDA) which can rule out environmental changes such as vegetation sway, shadow etc making the sensor very reliable.
Applications
- Buildings
- Approach
- Roof / Ceiling
- House
- Garden
- Garage
Key Features
- up to 12m, 180 degree outdoor PIR with anti-masking
- 4 PIR providing left/ right double layered detection for pet tolerance
- Selectable low (0.8m-1.2m) or high (2m) mount
- Independent left/ right detection areas and alarm outputs - ideal for CCTV

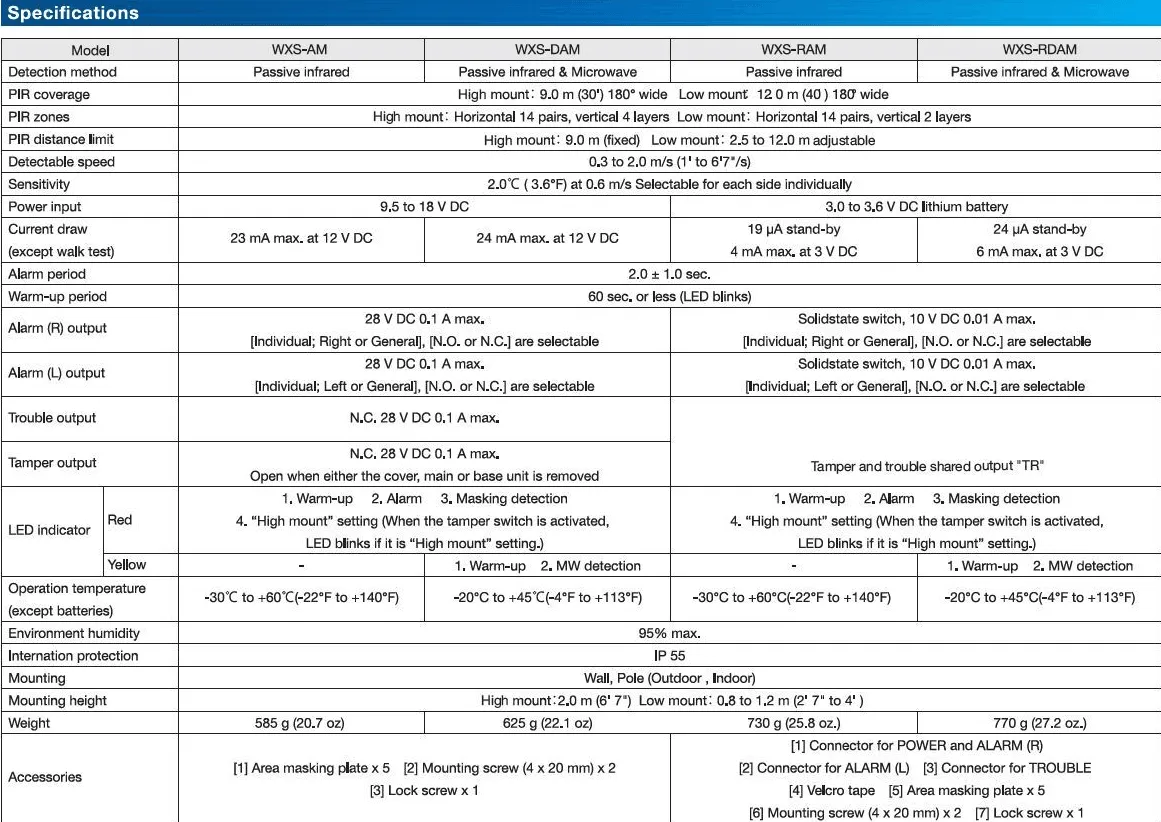

- SPECIFICATIONS CAN BE FOUND BELOW.
