Name: OPTEX WX SHIELD 180 OUTDOOR PIR WITH AM
SKU: 457120

Product Details ＋

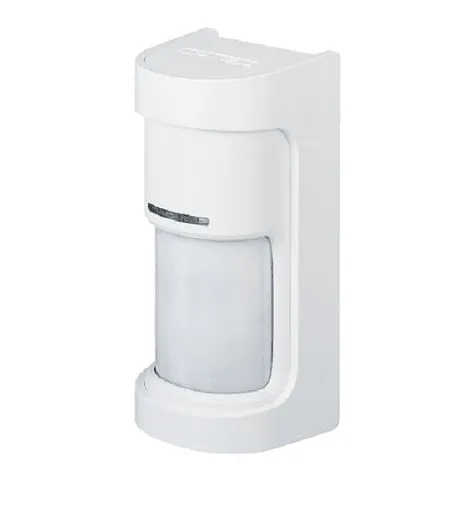

OPTEX WX SHIELD 180 OUTDOOR PIR WITH AM

Introducing the WXS series, the newest addition to the Shield family from OPTEX. It features a 180° outdoor intrusion detection sensor with customizable range and settings, as well as a selection between low (0.8 - 1.2m) or high (2m) mounting options and self-learning IR digital anti-masking technology.

Perfect for safeguarding residential or commercial properties, this sensor offers advanced features such as double conductive shielding to prevent false alarms caused by sunlight or RFI, and a convenient automatic walk test. The WXS-AM is the reliable hard-wired model you need.

Flexible mounting height

The WXS outdoor intrusion sensors can be installed at a low mount providing a flexible detection area from 2.5 to 12m. It can also be mounted at 2.0m high, creating a volumetric detection area with 9m detection range. This option can be effective to avoid vandalism or masking of lens.

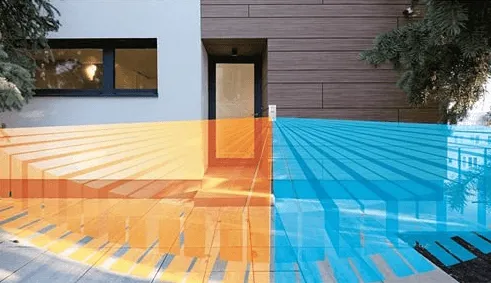

Two independent left / right detection areas

In low mount configuration, the WXS intrusion detection sensors feature two completely independent 90 degrees detection areas (left and right), that can be set at different detection distance, sensitivity and trigger independent alarm outputs which is very useful for PTZ activation.

Detection analysis and pet tolerance

The WX Shield outdoor intruder sensors are designed to be pet and animal tolerant which means it will not trigger if cats, dogs, birds are in the detection area making it very stable. Additionally they feature OPTEX Super Multi-dimensional Analysis (SMDA) which can rule out environmental changes such as vegetation sway, shadow etc making the sensor very reliable.
