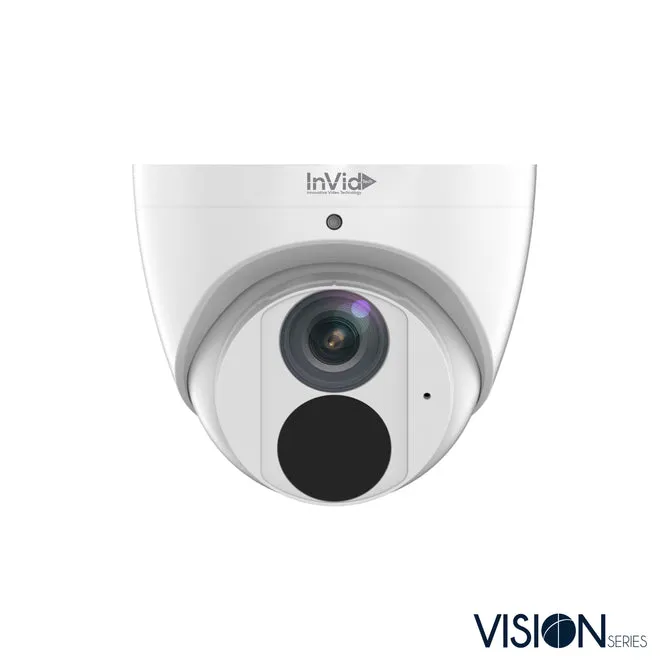

4 Megapixel IP Plug & Play, Outdoor Turret, Fixed Lens, up to 98’ IR Range, WDR, Built-in Mic, SD Card Slot, PoE/12VDC
Features
- True AI Human and VehicleClassification for Line Crossing and Intrusion Detection
- 4 Megapixel Resolution
- Fixed Lens
- True Day/Night with IR Range up to 98’
- Smart IRs
- Starlight Illumination
- Ultra H.265,H.265,H.264,MJPEG Compression
- 30 FPS Recording and Live
- True WDR 120dB
- Micro SD Slot: Up to 256GB
- Built-in Mic
- IP67 Weatherproof
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones &Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Camera |
|
|
Sensor |
1/3", 4.0 megapixel, progressive scan, CMOS |
|
Lens |
|
|
DORI Distance |
Lens (mm) Detect(ft) Observe(ft) Recognize(ft) Identify(ft) |
|
2.8 206.7(63m) 82.7(25.2m) 41.3(12.6m) 20.7(6.3m) |
|
|
4.0 295.3(90m) 118.1(36m) 59.1(18m) 29.5(9m) |
|
|
Angle of view(H) |
101.1° 83.7° |
|
Angle of View (V) |
55.3° 44.9° |
|
Angle of View (O) |
111.1° 89.2° |
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
Minimum Illumination |
Colour: 0.003Lux (F1.6, AGC ON) |
|
0Lux with IR on |
|
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
S/N |
>56dB |
|
IR Range |
Up to 98ft (30m) IR range |
|
Wavelength |
850nm |
|
IR On/Off Control |
Auto/Manual |
|
Defog |
Digital Defog |
|
WDR |
120dB |
Video |
|
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
H.264 code profile |
Baseline profile, Main profile, High profile |
|
Frame Rate |
Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; |
|
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|
|
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|
|
Video Bit Rate |
128 Kbps~16 Mbps |
|
9:16 Corridor Mode |
Supported |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
ROI |
Up to 8 areas |
|
Motion Detection |
Up to 4 areas |
Image |
|
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|
Digital Noise Reduction |
2D/3D DNR |
|
Smart IR |
Support |
|
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
|
Dewarping |
N/A |
|
HLC |
Supported |
|
BLC |
Supported |
Audio |
|
|
Audio Compression |
G.711 |
|
Suppression |
Supported |
|
Sampling Rate |
8KHZ |
Storage |
|
|
Edge Storage |
Micro SD, up to 256 GB |
|
Network Storage |
ANR, NAS(NFS) |
Intelligent |
|
|
Smart Intrusion Prevention |
Cross line, intrusion, enter area, leave area detection |
Events |
|
|
Basic Detection |
Motion detection, tampering alarm, audio detection |
|
General Function |
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
Network |
|
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
|
Clients |
InVid Vision (Mobile App) |
|
Vision Tools (IP Utility) |
|
|
InVid CMS |
|
|
Web Browser |
Plug-in required live view: IE9 , Chrome 41 & below, Firefox 52 & below |
|
Plug-in free live view: Chorme 57.0 , Firefox 58.0 , Edge 16 , Safari 11 |
|
Interface |
|
|
Network |
1 RJ45 10M/100M Base-TX Ethernet |
|
Built-in Mic |
Supported |
|
Audio Sensitivity |
-32±3dB |
Certifications |
|
|
Certifications |
CE: EN 60950-1 |
|
UL: UL60950-1 |
|
|
FCC: FCC Part 15 |
|
General |
|
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
|
Power consumption: Max 4.0W |
|
|
Dimensions (Ø x H) |
Φ4.4” x 3.7” (Φ110.5 x 94.1mm) |
|
Net Weight |
0.93lb (0.42kg) |
|
Material |
Metal |
|
Operating Conditions |
-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing) |
|
Strorage Environment |
-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing) |
|
Surge Protection |
2KV |
|
Ingress Protection |
IP67 |
