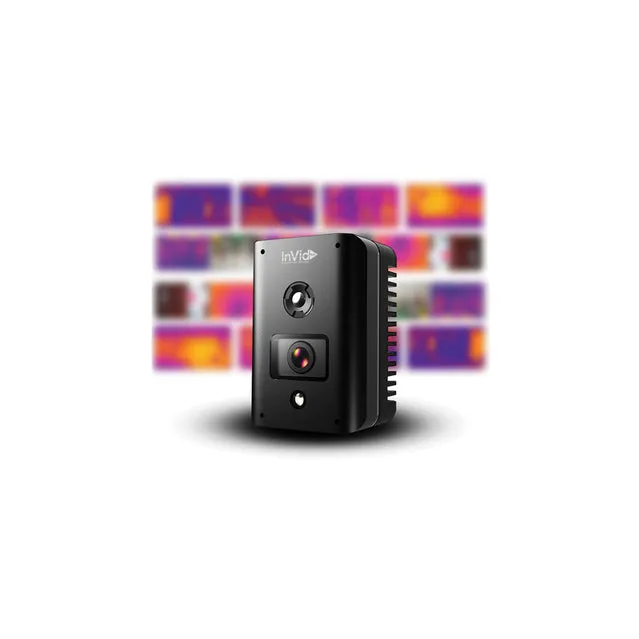

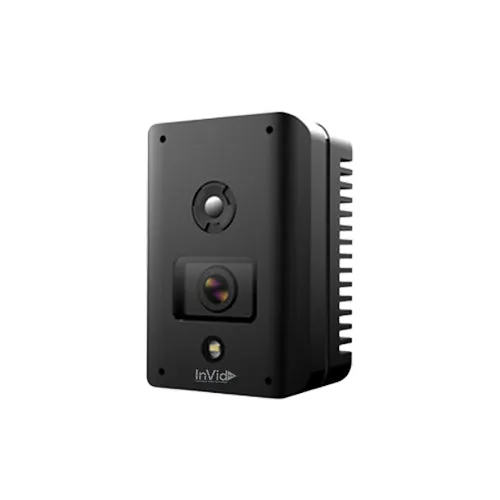

Thermal Camera

Detector Type

Uncooled IRFPA Microbolometer

Effective Pixels

256(H) ×192(V)

Thermal Sensitivity (NETD)

≤65mK @F1.0, 300K

Spectral Range

8~14um

Image Setting

Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI

Color Palettes

Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes

Lens Type

Fixed

Focus Control

Manual Focus

F No.

F1.0

Angle of View

H: 95°, V:75°

Visible Camera

Image Sensor

1/2.8" Sony CMOS

Effective Resolution

1920 (H)×1080(V)

Shutter Speed

1/5 ~ 1/20,000s

Min. Illumination

Color: 0.01Lux @(F1.2, AGC ON),  B/W: 0.1Lux

S/N Ratio

More than 55dB

W-LED

1pcs

Max Aperture

F2.0

Angle of View

H: 136.2°, V: 77.3°

Focus Control

Fixed

Video and Audio

Frame Rate

Main Stream:

Thermal: D1 @25/30fps

Visible: 1920×1080/1280×720 @25/30fps

Sub Stream:

Thermal: CIF @25/30fps

Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Thermal: 100Kbps~6Mbps

Visible:

main stream: 500Kbps~10Mbps;

sub stream: 100Kbps~6Kbps

Digital Zoom

16x

Mirror

Support

Defog

Support

Motion Detection

Support

Privacy Masking

Support

DVE Image Enhance

Off / On (4 Area, Rectangle)

Intelligence

Intelligent Functions

Motion detection, Disk alarm, I/O alarm, Temperature alarm

IVS

Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed

Temperature  Detection

Temperature Detection

Support 3 temperature measurement rule types (Spot, Line, Area)

Temperature Alarm

Over temperature alarm, Temperature difference  alarm

Accuracy

±2℃ / ±2%

Response Time

≤30ms

Temperature measurement range

-40°F~302°F (-40°C~150°C)

Temperature display mode

Temperature target >5℃, Display absolute temperature value, Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average)

Network

Ethernet

RJ-45 (10/100Base-T)

Protocols:

IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP

Interoperability

ONVIF, CGI, SDK

Streaming Method

Unicast

Max. User Access

10 Users

Edge Storage

Local PC for instant recording, Micro SD card 128GB

Web Viewer

Web Language

English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian

Interface

Ethernet

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio

N/A

Alarm

1ch Alarm Input, 1ch Alarm Output

RS485

Support

USB Interface

Support

BNC Output

Support

Reset Button

Support(Built-in)

General

Power Supply

DC12V ±10%

Power Consumption

Max 10W

Working Temperature

-4°F~140°F (-20°C~60°C)

Storage Conditions

0~ 90% RH

Certifications

CE /FCC

Ingress Protection

IP66

Casing

Metal

Dimensions

2.48 × 1.69 × 3.62 inch (63 × 43 × 92mm)

Net Weight

.99lbs (450g)
