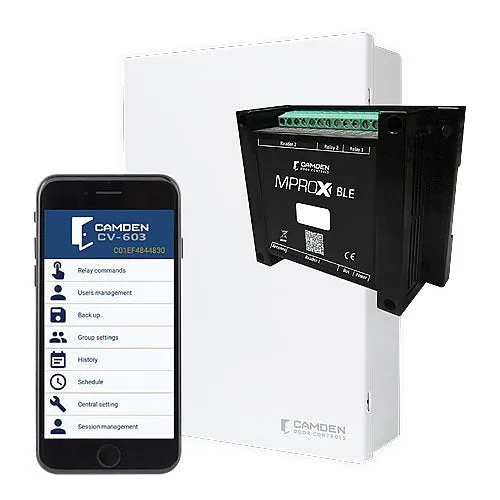

CV-603 series (MProx-BLE) is an app-based wireless Bluetooth® managed access control system designed to provide 'best in class' security of doors and gates, with up to 2,000 users. The intuitive programming app is Apple® and Android® protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up.

The CV-603 controller provides control for two doors, including inputs for readers, door position switch and REX device, and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.

Main Features

• Programmed via BLE Phone App
• 2,000 User Capacity
• Wiegand Reader protocol – 26, 30, 34 and 37 bits
• Common Alarm Relay – Trigger remote devices
• Anti-pass back – Higher level of security
• Sensor Input – For door position switch or vehicle loop detector
• Form C relays – Fail-safe or Fail-secure electric locks
• Built-in 433 Mhz. key fob receiver – used with CX-TXM-2 two button transmitters
• Encrypted rolling code and protected AES128 transmission of transmitters
• Operator Security Levels – 5, configurable
• 3 year warranty
