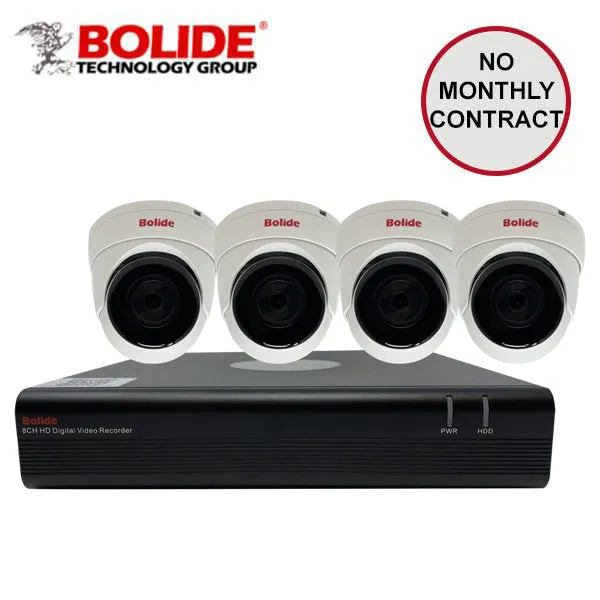

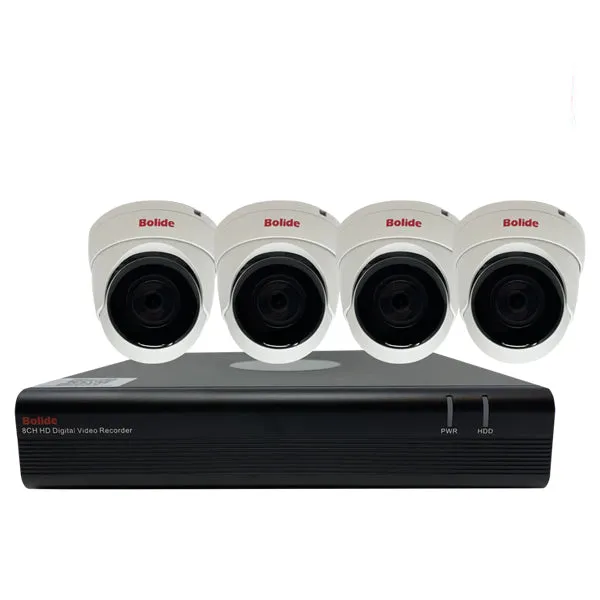

Product Details
＋
- 8-Channel Inputs
- H.265/H.264 Video Compression
- IP Hybrid DVR, Supports AHD / TVI / CVI/ CVBS Analog Formats
- Records Up to 2MP, 1080p Output
- HDMI and VGA Outputs
- 4-Channel Audio In / 1-Channel Audio Out
- 1 SATA Port supporting up to 12TB
- 1TB Hard Drive Included
- PTZ Control
Cameras Specifications:
| Image Sensor: | 1 / 3” CMOS |
| Effective Pixels: | 1920 (H) x 1080 (V) |
| Resolution: | 1080P |
| Signal System: | NTSC / PAL |
| Sync System: | Internal Sync |
| Video Output: | AHD / TVI / CVI / CVBS ( Analog ) Compatible |
| Audio: | Yes, Built-in Mic ( TVI Mode Only ) |
| Dimension: | 3.93 in x 3.54 in |
| Lens: | 2.8mm Fixed Lens |
| Power Input: | 12VDC |
| Power Consumption: | IR OFF ≤0.5W, IR ON ≤3.5W |
| Remote Interface: |
ACD ( AHD Coax Protocol ) |
| Working Temperature: | -22° ~ 122° F |
| Weather Rating: | IP66 |
| Weight: |
0.7lb |
DVR Specifications:
| Record Resolution: | 1080N / 720P / 960H IP: 1080P / 720P Single IP Channel Preview Up to 2MP 30FPS Multi-Channel, Preview Only Sub-Stream |
| Record Speed: |
Main Stream: 1080N ( 960x1080 ): 30FP 720P: 30FPS / Channel IP: PAL: 25FPS / Channel NTSC: 30FPS / Channel Sub-Stream: PAL：704x576: 10FPS/Channel NTSC：704x480:10FPS/Channel |
| Display Resolution: |
VGA: 1024x768,1280x720, 1280x1024, 1440x900, 1920x1080 HDMI: 1024x768,1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440, 3840x2160 |
| Feature: | Single/Quad/S.E.Q/ |
| Video Compression: | H.265 / H.264 |
| Video System: | NTSC/PAL |
| Operating System: | Embedded Linux |
| Analog Video Input/Output: | 8-Channel BNC / HDMI Output |
| Video Input: |
IP: Up to 2-Channels Composite: Up to 10 Channels ( Analog & IP ) |
| Audio Input/Output: | None, Audio Over Coax Only ( Cameras Must Be Set to TVI Mode ) |
| Recording Bandwidth: |
IP: 8Mbps |
| Recording Mode: | Continuous / Manual / Motion Detection / Alarm / Video Analytics |
| Simultaneous Playback: | Up to 4 Channels |
| Network Type: | LAN, DHCP |
| HDD Interface: | 1 SATA HDD, up to 12TB |
| USB: | 2x USB 2.0 ( Front ) |
| PTZ Control: | Control Over Coax, RS-485 |
| Mobile Surveillance: | Bolide Quick Connect on iOS / Android |
| Power Supply: |
DC12V / 2A |
| Dimension: | 9.05" x 8.46" x 1.85" |
| Working Temperature: | 32°F~ 104°F |
| Working Humidity: | 10%~90% |
| Humidity: | 10% ~ 90% Humidity |
| Dimension: | 300 x 227 x 53mm (11.8 x 8.9 x 2.1in) |
