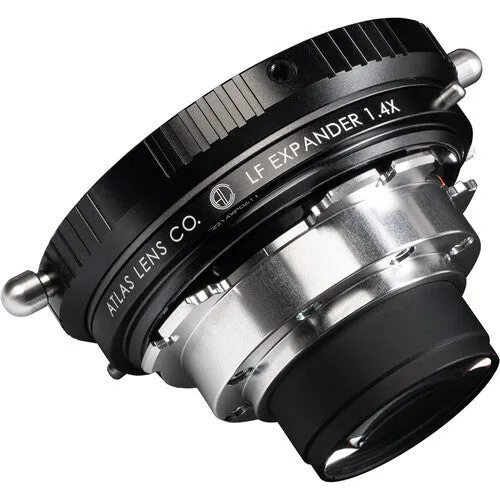

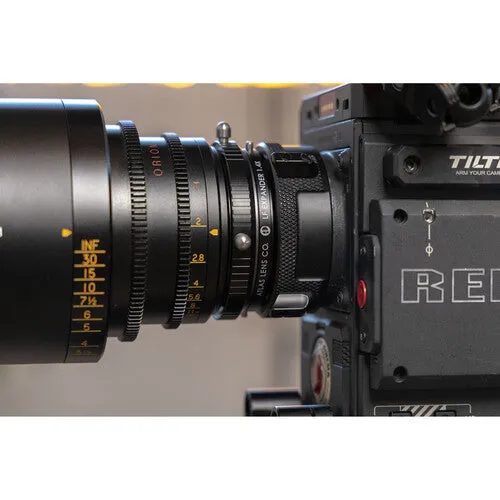

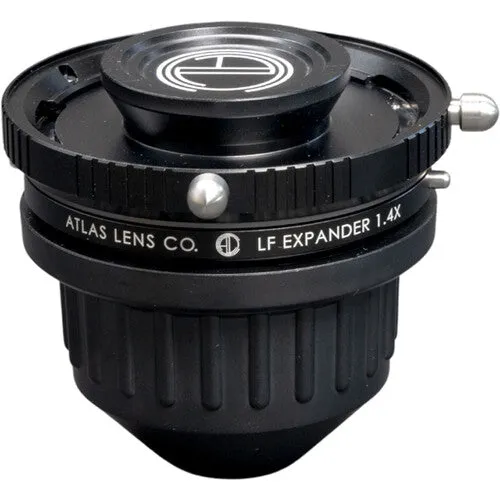

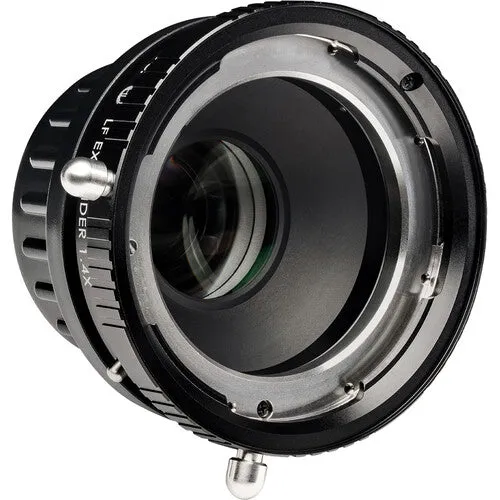

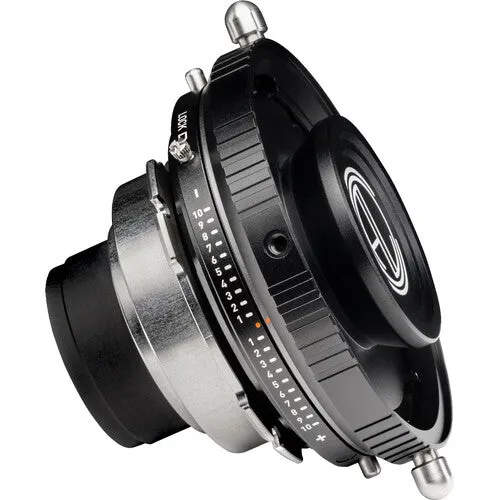

Increase the sensor coverage of your Orion-series lens with the PL lens to PL-mount 1.4x LF Extender from the Atlas Lens Co. This adapter helps to provide edge-to-edge coverage for up to full-frame camera sensors. This extender increases the focal length of your lens by a factor of 1.4x and decreases light transmission by 1 stop. The included gauge enables you to check whether the rear element of your lens will interfere with the optics of the extender. This extender is also compatible with most third-party PL-mount lenses.

Increases Sensor Coverage

• Increases Orion series coverage to include full-frame (36 x 24mm) sensors

• Compatible with ARRI LF, Sony VENICE, RED V-RAPTOR, and VistaVision cameras

• Creates a stylistic falloff compared to the 1.6x LF Extender

Low Light Loss

• Decreases light transmission by just 1 stop

Equivalent Focal Lengths

• Orion 21mm 1.4x expander = ~29mm

• Orion 25mm 1.4x expander = ~35mm

• Orion 32mm 1.4x expander = ~45mm

• Orion 40mm 1.4x expander = ~56mm

• Orion 50mm 1.4x expander = ~70mm

• Orion 65mm 1.4x expander = ~91mm

• Orion 80mm 1.4x expander = ~112mm

• Orion 100mm 1.4x expander = ~140mm

Features

• For Atlas Orion PL Anamorphic Lenses

• PL Lens to PL-Mount Camera

• Increases Coverage to Large Format

• Increases Focal Length by 1.4x

• 1-Stop Light Loss

• Rear Element Clearance Gauge

What's in the box

• Atlas Lens Co. 1.4x LF Extender (PL Lens to PL-Mount)

• Rear Element Gauge
