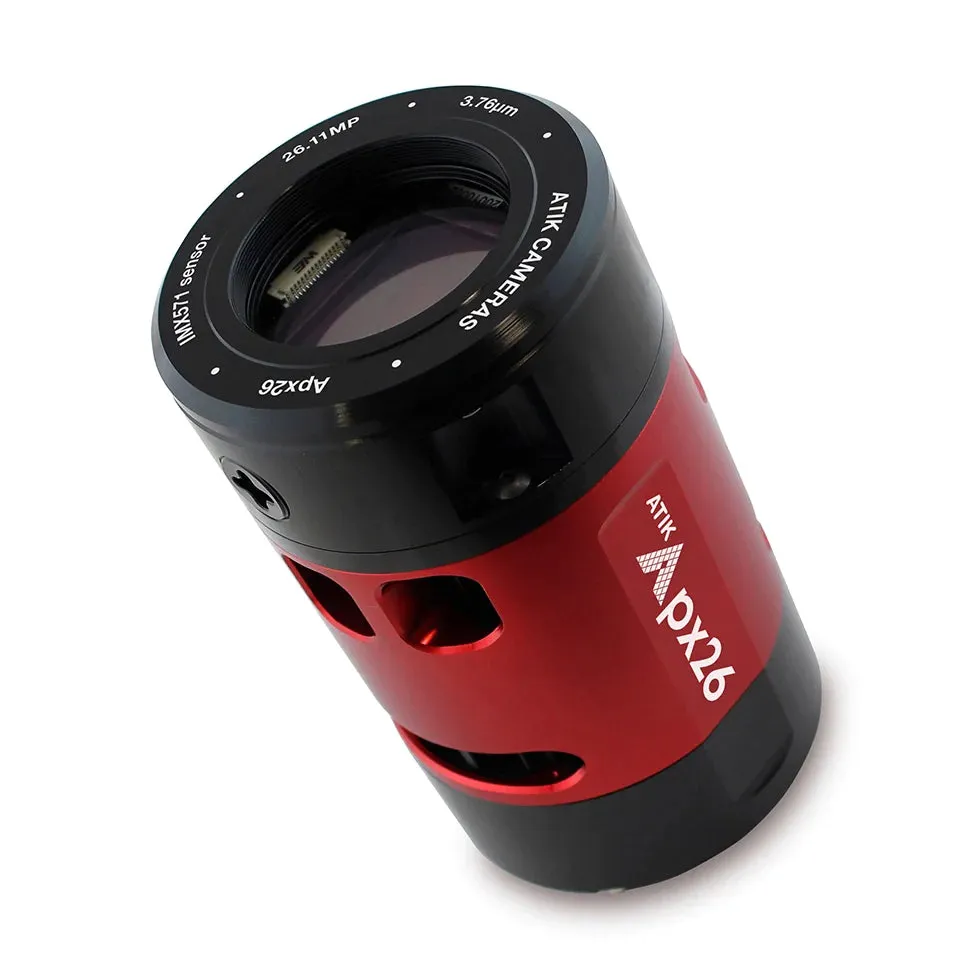

Atik Apx26 Monochrome

The Apx26 utilises the Sony IMX 571 full frame sensor, combining versatility with wide field views. This 26.11-megapixel sensor has low read noise, high quantum efficiency, and 16-bit analogue to digital conversion, perfect for a wide range of applications and telescopes.

The advanced Sony sensors used in our Apx series are well known for their ‘no glow’ quality with outstanding detail. The Apx26 also seamlessly integrates with Atik's advanced software solutions. The camera has a 512MB memory buffer to prevent image artefacts and dropped frames. Furthermore, the Apx26 comes with a built-in USB hub, high performance cooling, anti-condensation and anti-reflection optics, as well as easy chip adjustment. Completed with Atik's exceptional premium electronics and build quality to deliver incredible images for both scientific OEM applications and astrophotography.

Technical Specifications

• Image sensor: Sony IMX571 CMOS sensor

• Pixel array (resolution): 6244 x 4168

• No. of pixels: 26.11 MP

• Pixel size (µm): 3.76 x 3.76

• Sensor size: 28.3mm diagonal (27.7mm x 22.3mm)

• Full well: TBD

• ADC: 16bit

• Digitisation (MBPS): Limited by USB 3 speed

• Readout noise: TBD

• Cooling delta: -35°C

• Regulated cooler: Yes

• Water Assist: No

• Max. Exposure: 24 hours

• Min. Exposure: 10 ms

• PC Interface: USB 3 full speed

• Power Requirements: 12VDC, 5A

• Backfocus Distance: Default = 17mm ±0.5; Without levelling plate = 9.5mm ±0.5

• Thread on front: M54 x 0.75

• Weight: 1.1kg

• Overall dimensions: 89mm x 152mm

• Mono or colour: Either

• Trigger in/out: Optional


In the Box

• USB3 cable

• M54 dust cap

• M54 to 2" eyepiece adapter

• Allen keys for front plate adjustment

• Desiccant removal tool

• Quick start guide

Warranty & Manuals

Limited One Year Warranty
