Product Details
＋

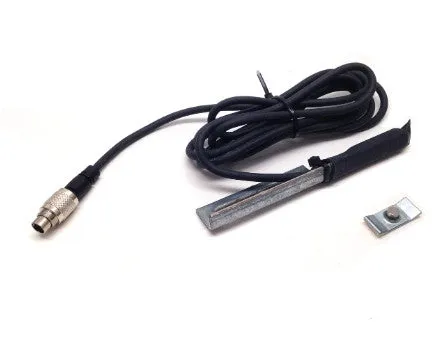

AiM devices can measure the kart front wheel speed using a non-contact sensor that needs a magnetic metallic trigger to pass in front of it. The sensor kit includes a metal plate with a magnetic cylinder and a metallic bracket the sensor is welded to.
- Datasheet can be downloaded
Installation notes
- Install the magnetic plate on the front wheel rim;
- install the bracket on the steering arm; if the steering arm is solid make a hole in it with a 6mm drill bit;
- when mounting the bracket ensure that the sensitive part passes in front of the cylinder at a 3-5 mm distance;
- irmly fix the bracket to the steering arm to avoid sensor movements due to the strong vibrations of the kart front wheel;
- ensure the bracket does not get in contact with the metallic plate when steering;
